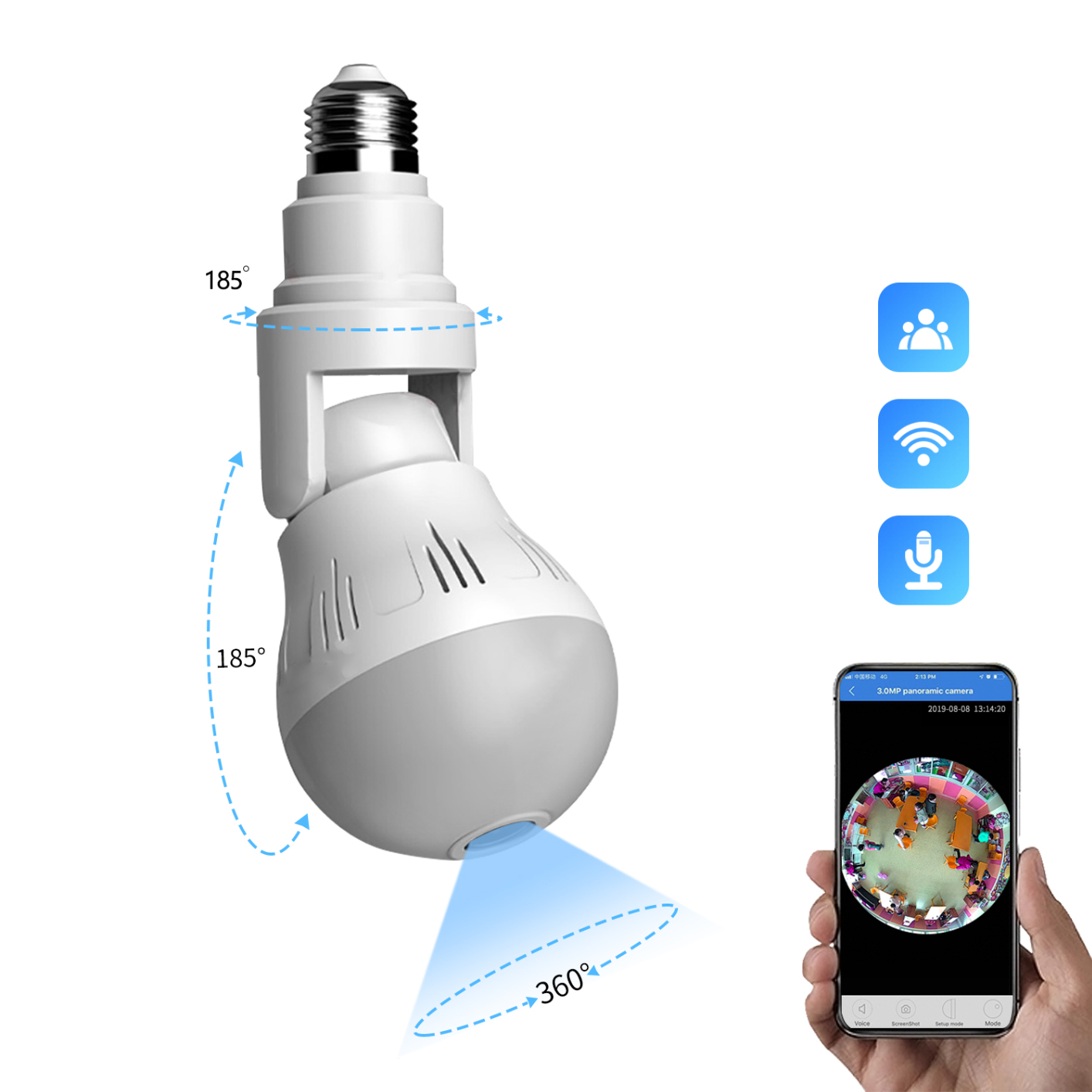

Model: |
VRT-A6 |
|||
|
System structure: |
Embedded Linux system, ARM chip structure |
|||
|
Chip: |
AK3918E |
|||
|
Resolution: |
200W |
|||
|
Sensor Resolution: |
1/2.9"COMS SC2232H/GC2063 1920*1080 |
|||
|
Lens |
Fisheye lens (1.35±3%mm) |
|||
|
Lens view angle |
360° |
|||
|
View angle: |
Horizontal: 185°/ Vertical:185° |
|||
|
Video compression standard: |
H.265/20FPS |
|||
|
Video format: |
PAL |
|||
|
Minimum illumination: |
0.01Lux@(F2.0,VGC ON),O.Luxwith IR |
|||
|
Electronic shutter: |
Auto |
|||
|
Backlight compensation: |
Support |
|||
|
Noise reduction: |
2D、3D |
|||
|
LED quantity: |
3pcs white LED + 3PCS infrared LED |
|||
|
Network: |
WIFI wireless transmission (support IEEE802.11b/g/n wireless protocol). |
|||
|
Night vision |
IR-CUT switch Automatic,about 5-8meters (It varies from environment) |
|||
|
Audio: |
Built-in microphone and speaker, support two-way audio and real-time transmission. |
|||
|
Network protocol: |
TCP/IP、UDP、HTTP |
|||
|
Alarm: |
①Motion detection and picture push ②AI Human intrusion Detection (optional) |
|||
|
ONVIF |
Support ONVIF |
|||
|
Storage: |
TF Card(Max 128G);Cloud storage /Cloud disk (optional) |
|||
|
Connection port: |
Standard E27 base |
|||
|
Power input: |
110~220V |
|||
|
Work environment: |
Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH |
|||
